Description

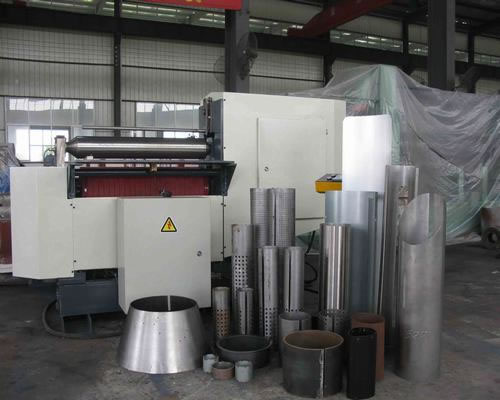

Two roll plate rolling machine is a new kind of plate bending machine. It has an upper roll, which is a rigid steel roll, and a bottom roll, a flexible and rubber-coated roll. The flexible roll is close to the rigid one to make the deformed workpiece into qualified shape. During the operation, we should feed the plate between the two rolls and then adjust their distance. Our roll bending machines are flexible, so it’s not easy for the plate surface to easily get wear and tear. The obvious merit for this rolling machine is that it doesn’t need pre-bending and trimming, and we can use it to roll circular, conical, elliptical, and customized shapes of plates. It is an ideal solution for rolling medium and large batches of tubes with length up to 2 meters and thickness up to 5mm.
Features
It’s easy to operate the two roll plate rolling machine. Standard roll bending machine is designed with a fully automatic rolling cell. The only thing that the operator needs to do is to feed the plate and offload the cylinder.
Advantages
1. This two roll plate rolling machine guarantees optimum quality of the rolled product. Thanks to the urethane roll forming design of the lower roll, it is possible to realize the best tolerances and super-fast rolling times. Our standard roll bending machine can guarantee output levels of 180-200 pieces/hour. The dynamic pressing force, resulting from the action of the urethane roll against the top roll, allows the complete forming of the plate along its entire length.
2. The high speed and one-pass rolling process of two roll plate rolling machine also eliminates the pre-bending - rolling - pre-bending procedures typical of traditional three and four rolls machines.
3. The reliability and precision of two roll plate rolling machine is guaranteed by a special patented design combined with a solid oversized structure. The exclusive hydro-mechanical roll lifting system ensures constant forming pressure and exact bending repeatability.
Notes
Please send us your plate’s rolling information, like plate material, maximum thickness, maximum width and minimum rolling diameter.
Roll Bending Machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.
