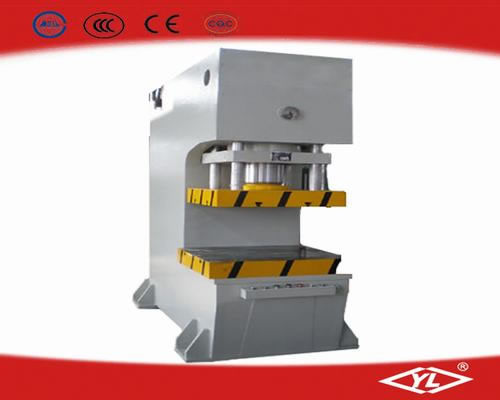

Single Action Press

1. Features

(1) The control system of single action hydraulic press can realize manual and semi-automatic operation.
(2) The four-post structure makes this single action hydraulic machine simple to operate and have excellent rigidity and high precision.
(3) Cartridge valve integrated system can help to reduce leakage and extend the service life of machine.
(4) PLC control assures high reliability and flexibility.
(5) Working pressure and stroke can be adjusted according to technological requirements.
(6) Users can preset stroke and pressure through the operation panel.

2. Performance of Machine and Structure Overview

(1) This single action hydraulic press is composed of slider block, upper separator, workhead, cylinder, stand post, electric system, hydraulic power system, etc. Surface of posts is conducted chromate finish after mid frequency induction hardening.
(2) Surface of the piston rod is dealt with mid frequency hardening. This makes its hardness up to HRC38-42 to extend its service life.
(3) Sealing elements of oil cylinder adopt imported materials to ensure reliable sealing.

3. Hydraulic System

(1) Hydraulic system adopts plug-in mounting integrated system with advantages of reliable work, sensitive motion, etc.
(2) Oil hydraulic pump consists of fuel tank, electromotor, high-pressure pump and cartridge valve, etc. Fuel tank is welded by steel plate. Oil filter is designed to ensure the cleanliness of oil and guarantee the service life of oil pump and valve.
(3) Hydraulic system with reliable seal ensures no leakage. Its main pipelines adopt flanged joint and are equipped with quakeproof devices.

4. Electrical Apparatus Control System

(1) Our single action hydraulic machine is equipped with independent electric appliance cabinet. Air switch relay is installed in the cabinet.
(2) Various alarm signals of press, limit switch and press action can realize easy and safe control.
(3) This single action hydraulic press is also designed with centralized control panel, where necessary buttons and switches are set.

5. Operating Modes

(1) This single action hydraulic machine is designed with two operating modes: inching and semi-automatic.
(2) Stroke of slider block is adjusted by stroke control device.

6. Safety Protection

(1) Once press the scram button, the press will stop immediately.
(2) Limit switch for slider block is equipped.

7. Work Environment

Power supply: three phase 380V (±5%), 50HZ; operating temperature: 0-40°C.

Features

1. Cushion device
2. Moveable workhead
3. Oil heating / cooling device
4. Displacement sensor
5. Touch screen
6. Mold clamping structure
7. Safety light curtains
8. Slider locking structure
9. Slider proportion speeder
10. Imported PLC control

YHD21

Series

Technical Parameter

Model
		YHD21-100	YHD21-200	YHD21-315	YHD21-400	YHD21-500	YHD21-630	YHD21-800	YHD21-1000	YHD21-1250	YHD21-1500
Rated Force (KN)		1000	2000	3150	4000	5000	6300	8000	10000	12500	15000
Return Force (KN)		100	450	600	650	900	1200	1200	1800	2500	3200
Max. Opening Height (mm)		900	1100	1250	1350	1500	1500	1500	1500	1800	1800
Liquid Cushion Force (mm)		200	630	1600	2000	2000	2000	3000	3000	3500	4000
Hydraulic Die Cushion Stroke (mm)		200	250	300	350	350	350	350	350	400	400
Slide Stroke (mm)		600	700	800	800	900	900	900	900	900	900
Speed of Slide Stroke (mm/s)	No Load	120	100	100	100	100	80	80	80	80	80
	Full Load	14	15	10	9	14	10	16	12	9	14
	Return Stroke	120	70	60	50	70	55	90	65	45	70
Speed of Hydraulic Die Cushion (mm/s)	Push Out	50	40	20	15	30	30	30	30	30	30
	Return	100	80	40	30	60	60	60	60	60	60
Table size (mm)	L-R	850	1000	1200	1200	1500	3000	3000	3000	3000	3000
	F-B	600	800	1200	1200	1200	1600	1800	2000	2000	2000
Size of Hydraulic Die Cushion (mm)	L-R	650	600	800	800	1000	2200	2200	2200	2200	2200
	F-B	400	500	800	800	800	1200	1250	1500	1500	1500
Moveable Workhead Load (T)						15	15	15	15	20	20
Motor Power (kW)		7.5	15	22	22	44	50	60
