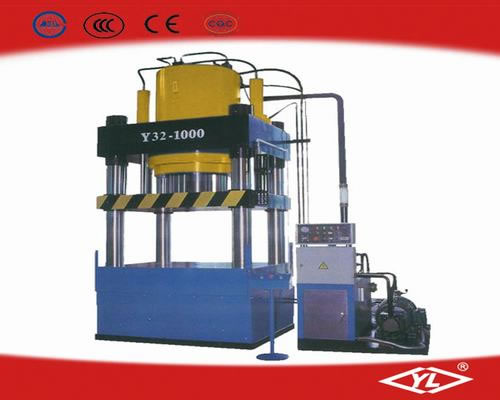

Four-post Hydraulic Press

Description

1. Our four-post hydraulic press is suitable for automatic operations of punching, forming, bending, straightening and pressing.
2. Enclosed drive offers easy accessible to maintenance, eliminating exposure of hanging parts.
3. Variable displacement piston pump is designed to offer high pressure resistance, long durability as well as low noise.
4. The hydraulic piping system of our four-post hydraulic machine is imported from overseas, and it uses integrated circuits to reduce oil leaks and keep maintenance easy.
5. Our four-post hydraulic machine is designed with a safety interlock and a protective fence to ensure safe operation.
6. Front side is designed with safety switches, Type 4 safety light curtains and foot pedal conform to standards of CE regulation.
7. This four-post hydraulic press can realize three operation modes: adjustable, manual and semi-automatic modes.
8. PLC control is flexible and safe. Adjustable proximity switches allow stroke adjustments in seconds.

Advantages

All our hydraulic, mechanical and electrical parts are standard in the industry and available throughout China.
Our four-post hydraulic press is designed with both hand buttons and foot pedal switches. All of them conform to OSHA.
Dual control you can select to use:
1. Adjustable pedestal height allows comfort and ease of operation.
2. Adjustable pedal switch.

Technical Parameter

Type	Rated Pressure (KN)	Max. Pressure (MPa)	Stroke of Slide Block (mm)	Stroke of Cylinder (mm)	Distance between Slide and Worktable (mm)	Speed of Slide (mm/s)			Effective Area of Worktable (mm)		Overall Dimensions (mm)			Motor Power (kW)
						Descent	Working	Return	L-R	F-B	L-R	F-B	Height
Y32 -40	400	25	350	150	700	20	14	45	500	460	2000	1300	2600	5.5
Y32 -63	630	25	450	200	750	20	14	120	560	500	2400	1400	3100	7.5
Y32 -100	1000	25	600	200	880	22	14	47	720	580	2500	1500	2950	7.5
Y32 -100A	1000	25	600	200	880	120	14	120	720	580	2500	1500	3150	7.5
Y32 -160	1600	25	700	200	900	100	12	70	780	640	2700	1700	3400	11
Y32 -160B	1600	25	700	200	1000	100	12	70	1000	800	2700	1700	3400	11
Y32 -200	2000	25	700	250	1100	100	8	52	1000	900	3100	1800	3500	18.5
Y32 -315	3150	25	800	300	1250	100	6 - 8	60	1260	1200	3235	2060	4295	18.5
Y32 -400	4000	25	800	300	1250	100	5 - 7	45	1240	1200	3235	2200	4500	22
Y32 -500	5000	25	900	350	1500	100	5	70	1400	1400	4060	3520	4995	2 × 18.5
Y32 -500C	5000	25	900	350	1500	100	6	70	2400	1400	6500	3800	4740	2 × 22
Y32 -630	6300	25	900	350	1600	100	10	60	1500	1500	4200	4200	5600	2 × 22
Y32 -800	8000	25	1000	400	1600	100	8	70	1500	1500	4800	4000	6000	4 × 18.5
Y32 -1000	10000	25	1000	400	1600	100	10	60	1600	1600	5250	3800	6800	4 × 18.5
Y32 -1250	12500	25	1000	400	1600	150	6 - 10	50	1700	1600	5250	3800	7000	4 × 22
Y32 -1600	16000	25	1000	400	1600	150	6 - 10	40	2000	1600	5800	4000	6200	4 × 22
Y32 -2000	20000	25	1300	500	1800
