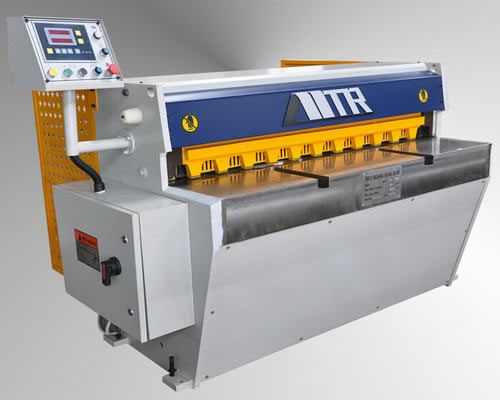

Precision Shearing Machine

Description

Precision shearing machine is primarily used for straight cut of sheet metal, metal materials (mild steel with the ultimate tensile strength less than 450N/mm2), and non-metallic materials including rubber, plastic, etc. The temperature of hot shear plate should be less than 50°C. This high precision plate shear shears only for one time at full load. If it cuts sheet metal with a higher ultimate tensile strength, the shearing thickness should be largely reduced. This plate shearing machine is well-suited for general machinery, electronics, light, automobile industry, electrical industry and other industries.

Features

1.This precision shearing machine is designed with whole steel welded frame, and it enjoys compact structure, light weight and excellent rigidity.
2. Our high precision plate shear adopts completely separate enclosed gear box, which is directly mounted on the main axle.
3. This plate shearing machine does not have a clutch and flywheel. It adopts electromagnetic brake motor to drive shearing, thus reducing the empty running time of motor and saving energy.
4. Our precision shearing machines feature excellent gear lubrication, low noise and long service life.
5. Pressing device of this high precision plate shear adopts belleville spring, presser foot, pressure plate, and non-slip mat with high pressure force to avoid damaging the surface of metal sheets.

Advantages

1. YINLI’s plate shearing machine uses materials manufactured by Shanghai Baosteel to control the quality from raw materials and ensure high precision.
2. All frames of shear body are checked and certified through rigid toughness examination and strength treatment. These frames are also mechanically designed and analyzed to achieve low accuracy loss and longer service life.
3. The compact structure and high working speed of high precision plate shear help to shorten the latency time, increase the productivity as well as improve the cost-performance.

Notes

A shearing machine that combines all of your most-wanted elements is packed into one dynamic package: accuracy, high speed, low-energy cost, and flawless performance. This shearing machine is a staple in any production environment that relies on their shearing performance.
Give us the information of metal plate material, such as thickness, maximum width, and we will quote you the most suitable machine!

Specifications

Type		2.5 × 2500	3.5 × 1250	3.5 × 1300	3.5 × 1500	3.2 × 2500	3.2 × 2000	3.2 × 2200	2.5 × 3000
Shearing Thickness (mm)		0.5 to 2.5	0.7 to 3.5	0.7 to 3.5	0.7 to 3.5	0.6 to 3.2	0.6 to 3.2	0.6 to 3.2	0.7 to 2.5
Shearing Width (mm)		2500	1250	1500	1500	2500	2000	2200	3000
Shearing Angle (°)		1°	1°30′	1°30′	1°30′	1°20′	1°30′	1°30′	1°30′
Number of Strokes of Upper Blade Adapter (min-1)		47
Number of Strokes (min-1)		10
Height of Working Table (mm)		800
Motor	Model	YEJ132S-4				YEJ132M-4			YEJ160M-4
	Power (kW)	5.5				7.5	7.5	7.5	11
	Rotational Speed (rpm)	1380
Dimension	Length (mm)	3124	1860	1860	2060	3124	2624	3124	3599
	Width (mm)	2210				2210	2210	2210	2448
	Height (mm)	1180				1180	1180	1180	1290
Weight (kg)		2000	1440	1500	1720	2100	1900	2300	2500
