Advantages
1. The asymmetrical plate rolling machine guarantees superior quality of bending because of the asymmetric geometry of the roll’s movement.
2. Pinch rolls can help to avoid slipping, even on very thin plate.
3. Our asymmetrical roll bending machine is surely the most convenient way to roll your shells consDescription

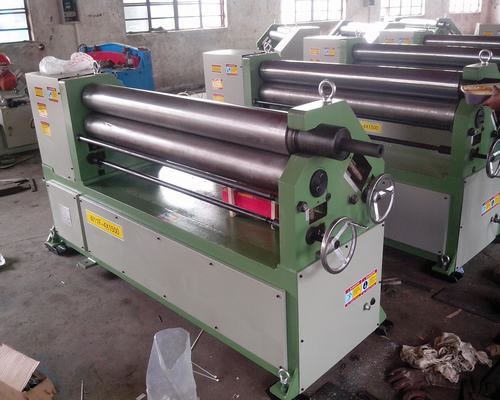

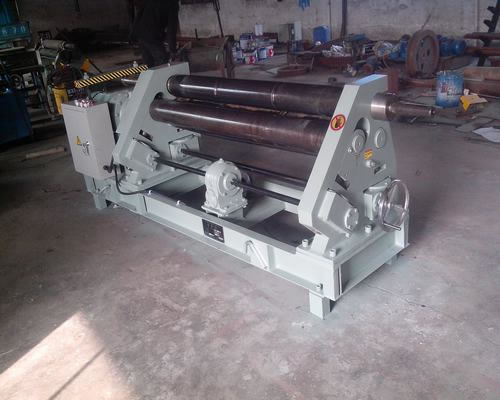

Asymmetrical plate rolling machine, also known as asymmetrical 3 roll bending machine, is designed with a three-roller asymmetrical structure with the top roll as the main drive and the lower roll moving vertically to tightly clamp the plate. The main drive comes from the gear between gear of the top roll and the lower roll. The side roller makes elevating movement and performs bending and rolling functions. This asymmetrical plate rolling machine features compact structure, convenient operation and easy maintenance. It is widely utilized in chemical, petroleum, boiler, machinery manufacturing, steel structure and fabrication of various cylindrical barrels.
Features
1. The side roll that moves inside a linear slide bends the plate near to the clamping point, bringing a pre-bending quality similar to the one achievable with a more expensive 4 roll machine.
2. The top roll of our asymmetrical roll bending machine is manual. Due to its asymmetrical structure, this rolling machine has pre-bending function. Bending rolls are motor driven and the top roll can be moved to remove workpieces.

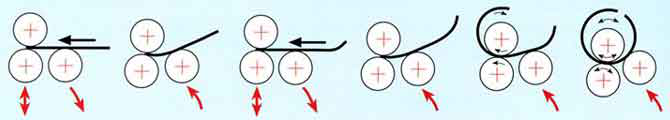

Below is a diagram showing how a plate is formed into a tube with our asymmetrical plate rolling machine.
istently with a minimum investment.
Note
Roll bending machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.
