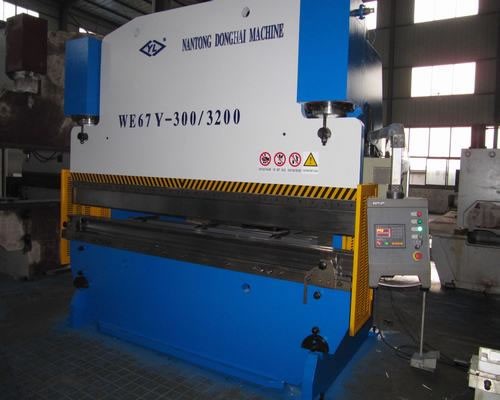

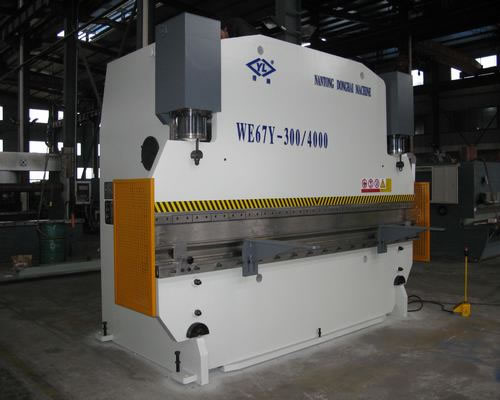

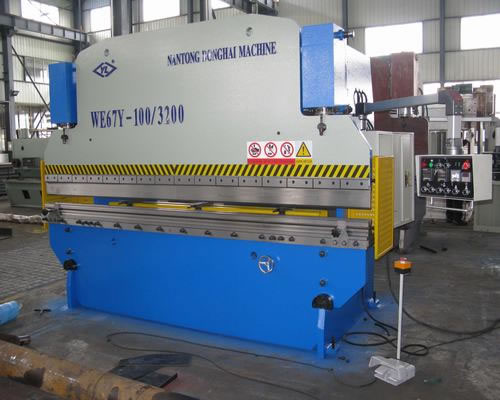

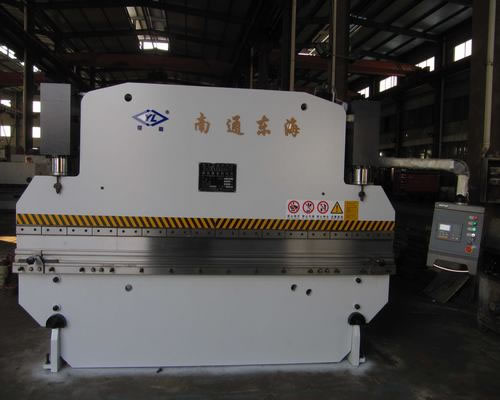

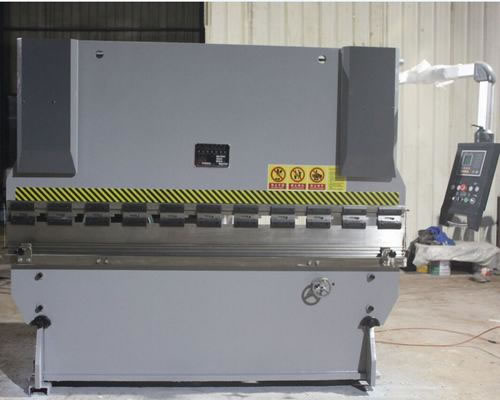

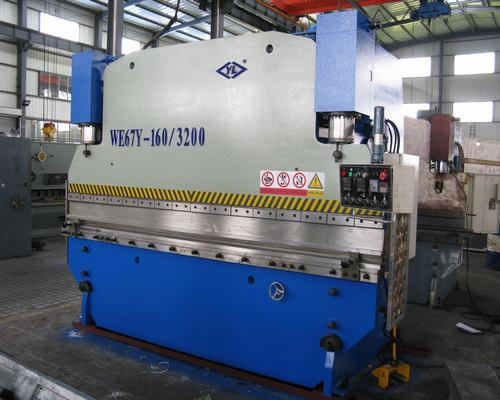

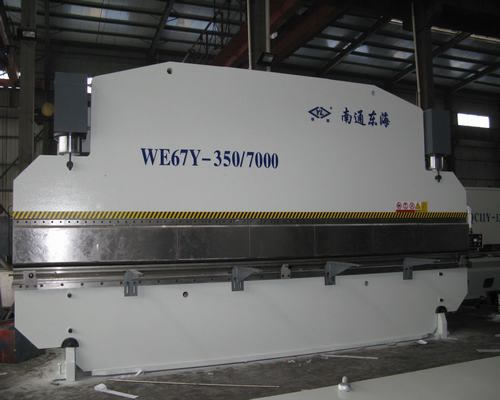

Hydraulic Press Brake

Description

Hydraulic press brakes are designed and developed through our years of experience in sheet metal machineries. CWCinders are mounted at the back side of press brake and are synchronized for parallelism between the ram and the table, by providing mechanical links connected with cWCinder. The heavy-duty steel structure is so engineered to absorb heavy shocks of overload. All welding edges are properly machined for weld joint. The electric control panel is fixed on the side wall at convenient place for easy reach of operator. Standard "V” block, "V” punch and manually-operated back gauge system are supplied as standard accessories. Hydraulic components are offered by reputed suppliers like Rexroth, Yiken, Dowty, Polyhydron, etc.

Advantages

Hydraulic bending machine is versatile, accurate as well as easy to operate and maintain. That’s the way we make our hydraulic plate bender. Whether you want to bend steel or plastic, there’s always a hydraulic press brake to match your needs, ranging from the 20-ton to the 550-ton model. No matter the size, each hydraulic bending machine features convenient operation for maximum output and ease of maintenance for maximum productivity.

Features

1.

Simple & Flexible Controls

: Use either a 3-position fully guarded foot switch or a convenient multi-switch control panel.
2.

Accuracy

: Every machine is thoroughly inspected and tested. Parallelism is maintained between the table and the ram, or at a preset angle, by using precise automatic leveling controls. Micrometer adjustment on the control end allows for tilting or paralleling of the ram. A control monitors the actual distance between ram and bed, assuring repeatability independent of die wear or end plate deflection.
3.

Versatility

: Our hydraulic bending machines have long, full tonnage stroke; selectable speed and adjustable length; adjustable height for short stroke.
4.

Maintenance

: Clevis-mounted cylinders eliminate cylinder binding, reducing the possibility of oil leaks. Bushings and pins will not rotate under load, resulting in much less wear than competitive products. The manifold assembly saves space and makes it convenient to replace the components.
5.

Convenient Settings

: Readout of our hydraulic plate bender reads in increments of 0.001 inch allows recorded settings of closed heights.
6.

Standard Components

: Standard components like the control system components, micro switches, filter cartridges and hydraulic fluid allow easier routine maintenance.
7.

Flexibility

: 2-speed ram is electrically controlled, facilitating shift to a lower speed before coming into contact with sheet metal.
8.

Durability

: All steel end frames, rams and tables are made of durable materials.

Notes

1. Proper operation in accordance with the manufacturer’s instructions;
2. Keep the hydraulic press brake clean all the time, and add anti-corrosive grease to move parts regularly;
3. Before starting the hydraulic bending machine, lubricate it each time, and the lubricant should be free of foreign substances.
4. Make sure that the triangle belt, hand shank and buttons are in optimum operating situation. Check if the electrical parts can work in a safe and reliable way.
5. Well-trained personnel are responsible for operating the hydraulic plate bender to avoid breaking it or giving rise to any accident.
6. Lubrication and careful inspection play significant roles in the maintenance of shearing machine.
Give us the information of metal plate material, such as thickness, maximum width, and we will quote you the most suitable machine!

Technical Parameter

Type	Nominal Pressure (KN)	Length of Workbench (mm)	Distance between Poles (mm)	Throat Depth (mm)	Slide Stroke (mm)	Number of Stroke (spm)	Max. Open Height (mm)	Main Motor Power (kW)	Weight (kg)	Overall Dimensions (L × W × H) (mm)
WC67Y-40/2200	400	2200	1850	250	100	≥11	340	5.5	2,850	2260 × 1200 × 1900
WC67Y-40/2500	400	2500	2055	250	100	≥11	340	5.5	3,500	2560 × 1200 × 1920
WC67Y-63/2000	630	2000	1650	250	100	≥10	335	5.5	4,200	2160 × 1725 × 2200
WC67Y-63/2500	630	2500	2050	250	100	≥10	335	5.5	4,800	2605 × 1725 × 2200
WC67Y-63/3200	630	3200	2670	250	100	≥10	335	5.5	5,850	3300 × 1725 × 2355
WC67Y-63/4000	630	4000	3300	250	100	≥10	350	5.5	6,500	4000 × 1725 × 2405
WC67Y-80/2500	800	2500	2050	250	100	≥10	335	7.5	5,500	2605 × 1725 × 2355
WC67Y-80/3200	800	3200	2660	250	100	≥10	335	7.5	6,500	3300 × 1725 × 2405
WC67Y-100/2500	1000	2500	1950	320	140	≥8	385	7.5	6,500	2560 × 1320 × 2510
WC67Y-100/3200	1000	3200	2650	320	140	≥8	385	7.5	8,000	3260 × 1320 × 2510
WC67Y-100/3600	1000	3600	3000	320	140	≥8	385	7.5	8,500	3660 × 1320 × 2510
WC67Y-100/4000	1000	4000	3200	320	140	≥8	385	7.5	9,000	4060 × 1320 × 2760
WC67Y-100/5000	1000	5000	4200	320	150	≥8	420	7.5	11,000	5100 × 1740 × 2800
WC67Y-125/3200	1250	3200	2680	320	150	≥8	370	7.5	8,500	3280 × 1820 × 2430
WC67Y-125/3600	1250	3600	3000	320	150	≥8	370	7.5	9,500	3690 × 1740 × 2450
WC67Y-125/4000	1250	4000	3280	320	150	≥8	370	7.5	10,000	4080 × 1825 × 2430
WC67Y-160/3200	1600	3200	2640	320	200	≥6	470	11	11,500	3270 × 1625 × 2665
WC67Y-160/4000	1600	4000	3300	320	200	≥6	470	11	12,500	4070 × 1625 × 2765
WC67Y-160/4500	1600	4500	3300	320	200	≥6	470	11	14,000	4580 × 1930 × 2800
WC67Y-160/5000	1600	5000	4100	320	200	≥6	470	11	15,000	5080 × 1930 × 3160
WC67Y-200/3200	2000	3200	2800	320	200	≥3	465	11	13,000	3280 × 1930 × 2800
WC67Y-200/4000	2000	4000	3300	320	200	≥3	485	11	15,200	4060 × 1750 × 2950
WC67Y-200/4500	2000	4500	3300	320	200	≥3	465	11	18,000	4580 × 1930 × 2800
WC67Y-200/5000	2000	5000	4100	320	200	≥3	465	11	21,000	5080 × 1930 × 3160
WC67Y-250/3200	2500	3200	2620	400	250	≥3	560	18.5	18,000	3380 × 2000 × 3260
WC67Y-250/4000	2500	4000	3200	400	250	≥3	560	18.5	20,500	4070 × 2000 × 3260
WC67Y-300/4000	3000	4000	3190	400	245	≥3	560	18.5	29,000	4000 × 2035 × 3110
