Description

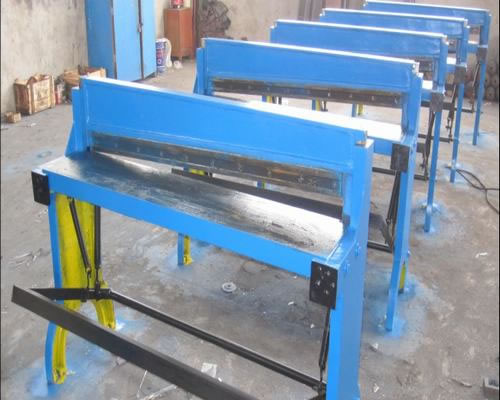

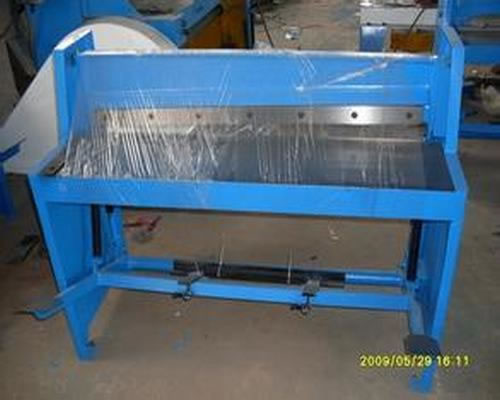

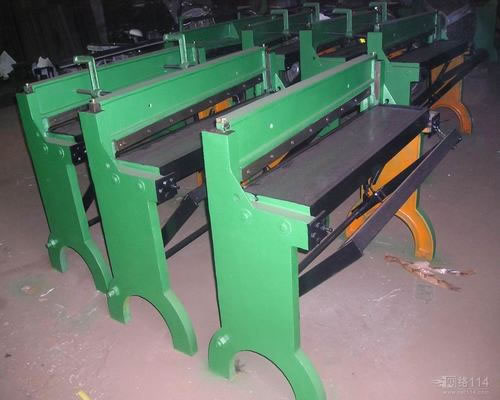

Manual shearing machine is designed with a new structure by using sliding rails and economic type special-purpose digital control system. This hand guillotine shear can be equipped with a light-weight pressure device to realize high shearing quality. Our hand-operated shearing equipment is easy to move, and is extensively used in the sheet metal industry. Besides, it is easy to operate with high precision.
Features
Manual shearing machine is operated by hand, and it’s economic and simple in structure. Hand guillotine shear is well suited to shear thin plate, and on account of its manual operation, it cannot work as fast as a hydraulic shear.
Advantages
1. Quality Assurance System
(1) Our company complies with ISO9001:2008 standard during the whole manufacturing process of hand-operated shearing equipment, from design, process and inspection control to delivery, installation and service.
(2) The quality system is operated by strictly complying with quality manual and procedure files, work instruction, and related technical and management standards made by the company.
2. Quality Assurance Procedure of Out-sourced Parts
(1) We evaluate the out-sourced parts of our manual shearing machine, including the control system, cylinder, hydraulic components, motor, pump, etc.
(2) After evaluation, we select qualified suppliers as business partners.
(3) We purchase parts of hand guillotine shear in accordance with our plan, purchase contract, quality requirement as well as technical and inspection standards.
(4) We designate related technicians to inspect the parts on site.
Notes
Hand-operated shearing equipment is very dangerous if improperly used, because it may crush fingers, hands, etc. Always keep hands, fingers, hair and clothing clear, and safety protection devices, such as safety light curtains, are recommended. Users shall strictly comply with safety guidelines.
Give us the information of metal plate material, such as thickness, maximum width, and we will quote you the most suitable machine!
Technical
Parameter
Model
|
Max. Shearing Thickness (mm)
|
Max. Shearing Width (mm)
|
Shearing Angle (°)
|
Dimension
(mm)
|
Weight (kg)
|
Q11-1.2 × 1300
|
0.5 to 1.2
|
1300
|
1°30′
|
1500 × 1100 × 1140
|
202
|
Q11-1 × 1600
|
0.5 to 1
|
1600
|
1°30′
|
1900 × 1100 × 1140
|
400
|
Q11-1 × 2000
|
0.5 to 1
|
2000
|
1°30′
|
2240 × 1100 × 1140
|
560
|
