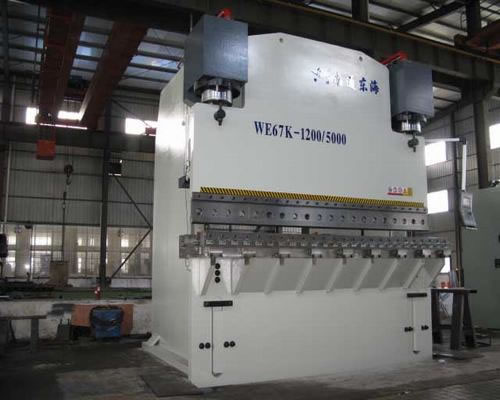

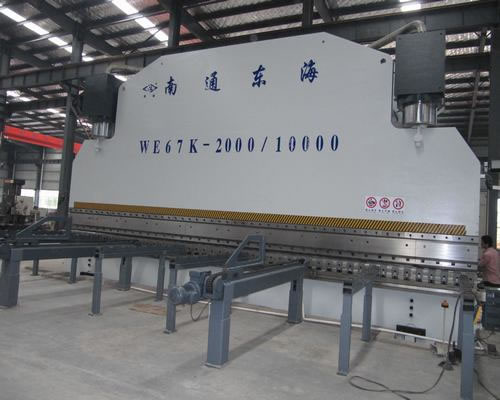

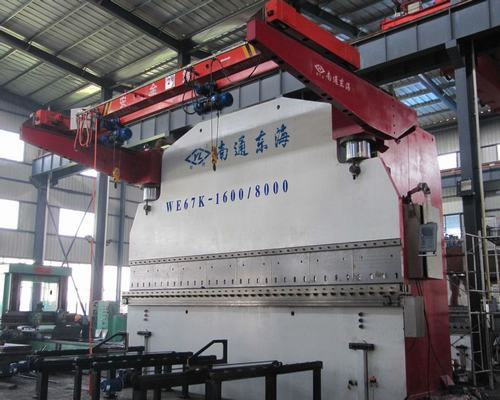

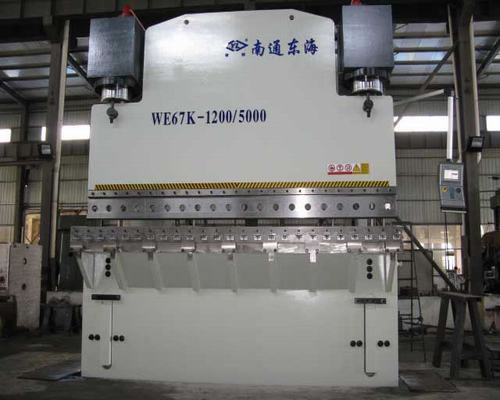

CNC Press Brake

Description

CNC press brake is an electro-hydraulic synchronized double-cylinder CNC bending machine. Its bending principle is similar to the angle forming principle of common bending machinery. This CNC plate bender can bend various workpieces according to different angles of molds. The CNC system controls the electro-hydraulic proportional direction valve. CNC bending machine can realize full closed-loop digital control through the grating feedback. CNC press brake can simply be referred to as a bending machine that controls positioning system, bending depth and automatic compensation for workbench deformation through CNC system. We also provide hydraulic press brake and tandem press brake.

Advantages

1. CNC press brake is equipped with computer system from Netherlands, and imported grating, hydraulic system and servo motor.
2. CNC bending machine enjoys excellent performance and strong loading capability.
3. The electronic-hydraulic proportional servo synchronization allows arbitrary point control during stroke. The accuracy of repeat can reach ±0.01 and the parallelism is ±0.02.
4. CNC plate bender features high precision and small geometric tolerance.

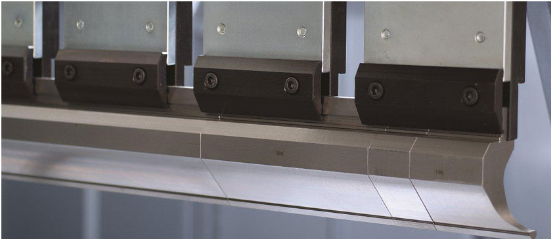

5. The lower workbench adopts deflection compensation cylinder, and the upper mold is equipped with deflection compensation agency.
6. Slide stroke and back gauge are controlled by computer. The back gauge adopts rolling guide and ball screw with high repeat accuracy.

Features

1. Our CNC press brakes have exceptionally large strokes and throat depths to allow cost effective production of simple to complex shapes that require large dimensions for ease of handling and removal.
2. An easy-to-use control reduces the required skill of operator. Machine adjustment is reduced to a minimum because of the quick and easy-to-use bend sequence determination tool.
3. In the production mode, the operator can graphically simulate the bend process of the product guiding him during the operation of CNC bending machine.
4. Inverter controlled servo motors are designed for all main moving components like the ram and back gauge.
5. HE offer both manual and automatic position control systems. The manual system is equipped with single point adjustment and position readout. The automatic CNC control system calculates the position and setting from normal program information and sets them via the CNC.
Machine Tool Deflection Compensation Table (V axle)

Notes

1. Proper operation in accordance with the manufacturer’s instructions;
2. Keep the CNC press brake clean all the time, and add anti-corrosive grease to move parts regularly;
3. Before starting the CNC bending machine, lubricate it each time, and the lubricant should be free of foreign substances.
4. Make sure that the triangle belt, hand shank and buttons are in optimum operating situation. Check if the electrical parts can work in a safe and reliable way.
5. Well-trained personnel are responsible for operating the hydraulic plate bender to avoid breaking it or giving rise to any accident.
6. Lubrication and careful inspection play significant roles in the maintenance of CNC plate bender.
Give us the information of metal plate material, such as thickness, maximum width, and YINLI will quote you the most suitable machine!

Technical

Parameter

Model	Nominal Pressure (KN)	Length of Workbench (mm)	Distance between Poles (mm)	Throat Depth (mm)	Slide Stroke (mm)	Max. Open Height (mm)	Main Motor Power (kW)	Overall Dimension (L × W × H) (mm)	Height (kg)
WE67K-63/3200	630	3200	2700	250	100	400	5.5	4340 × 1460 × 2420	6000
WE67K-100/3200	1000	3200	2700	320	150	450	7.5	3450 × 1450 × 2600	8000
WE67K-160/3200	1600	3200	2700	320	200	465	11	3250 × 2535 × 2920	13000
WE67K-250/3200	2500	3200	2700	400	250	560	15	4000 × 2250 × 4060	18400

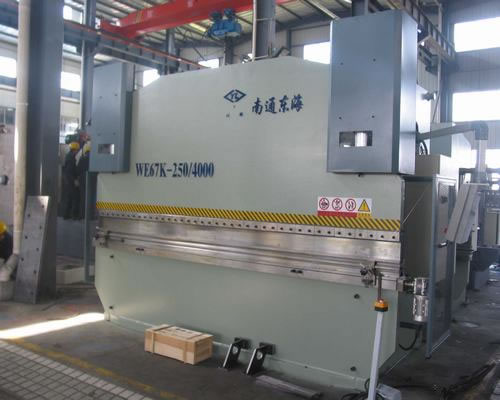

WE67K-250/4000	2500	4000	3300	400	250	560	15	4800 × 2250 × 4060	20000
WE67K-250/5000	2500	5000	4100	400	250	560	15	5800 × 2250 × 4060	22000
WE67K-250/7000	2500	7000	6250	400	250	560	15	7800 × 2250 × 4160	25000
WE67K-320/4000	3200	4000	3300	400	250	560	22	4060 × 2570 × 4560	22000
WE67K-320/5000	3200	5000	4300	400	250	560	22	5060 × 2570 × 4560	24510
WE67K-320/6000	3200	6000	5300	400	250	560	22	6060 × 2570 × 4560	27020
WE67K-400/4000	4000	4000	3100	400	320	625	37	4050 × 3240 × 3880	29950
WE67K-400/5000	4000	5000	4210	400	320	625	37	5050 × 3240 × 3880	37000
WE67K-400/6000	4000	6000	5100	400	320	625	37	6050 × 3240 × 3880	44050
WE67K-500/4000	5000	4000	3100	400	320	630	37	4090 × 2965 × 5320	32700
WE67K-500/5000	5000	5000	4100	400	320	630	37	5090 × 2965 × 5320	39750
WE67K-500/6000	5000	6000	5100	400	320	630	37	6090 × 2965 × 5320	46800
WE67K-630/5000	6300	5000	4100	400	320	710	45	5050 × 4910 × 3200	67950
WE67K-630/6000	6300	6000	5100	400	320	710	45	6050 × 4910 × 3200	75000
WE67K-800/5000	8000	8000	6700	350	400	750	55	9500 × 3000 × 6050	100000
