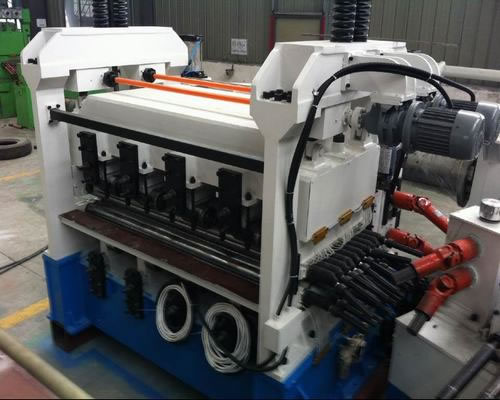

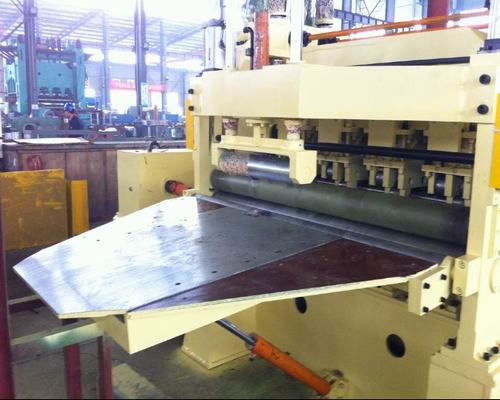

Six-high Leveler

Description

This six-high leveler, also known as six-high straightening machine, is an upgraded model of the four-high leveler. The installation of intermediate rolls between the upper/lower work rolls and the backup rolls constitutes the six-high leveler structure. The backup rolls have to act directly on intermediate rolls to bend the work rolls, so it’s difficult to correct poor shape, but it does prevent stripping or marking the top and bottom of surface-critical materials.

Features

1. The long carrier roll along with multiple sets of backup rolls constitutes the six-high leveler structure.
2. A gap-removing device is designed for this six-high roll leveling machine.
3. The work rolls and carrier roll can process precise grinding, hard chrome plating and precise polishing.
4. Our six-high straightening machine works with low noise and smooth transmission. The surface of the leveled plate features excellent quality.
5. The heat treatment process and the structure of this six-high leveler are all similar to the four-high lever.
6. Work rolls and carrier roll are made of GCr15, 9CrSi or 9Cr2Mo.

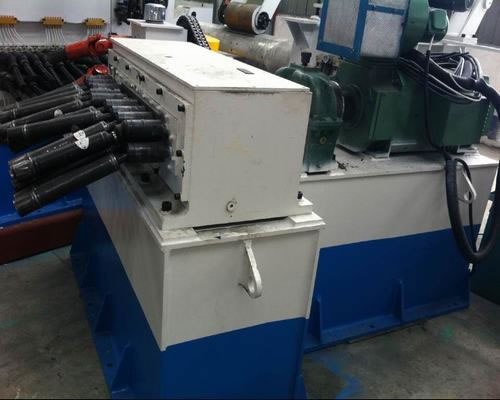

7. The universal joint shaft of this six-high leveling machine is made up of alloy steel materials.

Advantages

YINLI is a professional manufacturer and supplier of six-high leveler in China. In addition to this six-high leveling machine, we also provide shearing machine, plate rolling machine, press brake, profile bending machine, etc. Due to high quality, professional service and competitive price, our products are well recognized by customers all over the world.

Application

Our six-high leveler is primarily applied to level aluminum plate, stainless steel plate, copper, non-ferrous metal plate, different metal composite plates and high precision plates. The force of work rolls is distributed evenly. This six-high roll leveling machine features rigid structure, small bending deformation and high leveling precision. YINLI six-high straightening machine is an essential device for leveling aluminum.

Note

Give us the information of metal plate material, such as thickness, maximum width, required accuracy, and YINLI will quote you the most suitable machine!

Technical Parameter

Model	Max. Leveling Thickness (mm)	Max. Leveling Width (mm)	Min. Leveling Thickness (mm)	Distance between Work Rolls (mm)	Diameter of Work Rolls (mm)	Number of Work Rolls	Leveling Speed (m/min)	Main Motor Power (kW)
W43 - 2 × 800	2	800	0.6	50	48	21	6	7.5
W43 - 2 × 1300	2	1300	0.6	55	50	19	10	55
W43 - 3 × 1600	3	1600	0.8	70	65	15	10	45
W43 - 3 × 2500	3	2500	0.8	80	75	19	10	37
W43 - 6 × 2000	6	2000	1.5	100	95	13	8.6	45
