Description

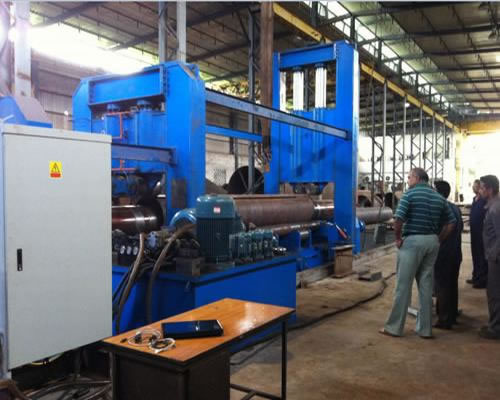

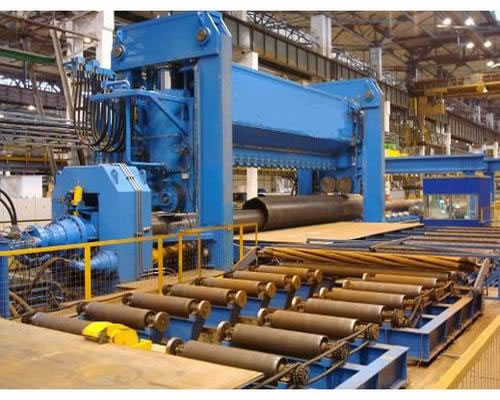

Oil and gas pipe rolling machine is specially engineered to roll long tubes with small diameters. Our tube rolling machine mainly consists of rack, fixed side rack, material side rack, work roll, support roll device, drive, discharging device, balance equipment, anti-distortion device, hydraulic system, electrical control system and other components. The top roll of our oil pipe rolling machine adopts back deformation method to get rid of deflection in the manufacturing process.
Features
1. During the bearing life, the gas pipe rolling machinery owns permanent lubrication without refueling.
2. The clamping pressure is adjustable without skidding. The productivity is 50% to 80% more than traditional one.
3. This tube rolling machine is driven hydraulically with high efficiency.
4. The rolling diameter of our oil pipe rolling machine can catch 1.1 times of the upper roll.
5. Easy and convenient to operate and maintain.
Advantages
Large radius rolling of tubes, pipes, channels, angles, flat bars and T-bars is usually done on a pyramid-style 3 roll bending machine. When rolling pipe or tube, a 3 roll bending machine is needed to match the contour of the tube, so as to prevent the wall stress from flattening the tube.
To roll your pipe/tube to a small radius that can be accurately done, then you need a rotary draw tube rolling machine. It uses a die set that matches the size of pipe/tube and the required radius. The outer die pulls the pipe / tube as it rotates around the inner mandrel.
Note
Please send us your plate’s rolling information, like plate material, maximum thickness, maximum width and minimum rolling diameter.
Roll bending machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.
Technical Parameter
Model
|
Rolling Thickness (mm)
|
Max. Plate Width (mm)
|
Diameter of Upper Roll (mm)
|
Rolling Diameter (mm)
|
Main Motor
(kW)
|
W11G - 16 × 12000
|
3-16
|
12000
|
300
|
317 to 800
|
55
|
W11G - 20 × 12000
|
3-20
|
12000
|
350
|
406 to 1400
|
75
|
W11G - 30 × 12000
|
4-30
|
12000
|
500
|
610 to 1600
|
90
|
W11G - 40 × 12000
|
5-40
|
12000
|
560
|
813 to 1800
|
150
|
