Description

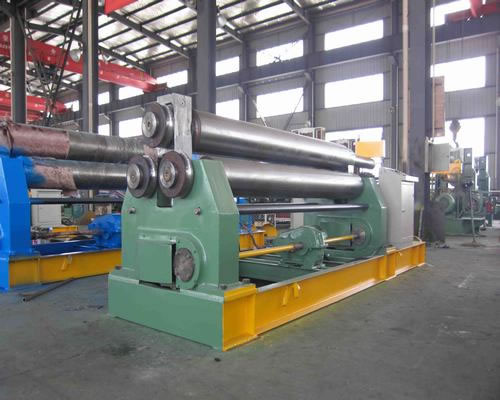

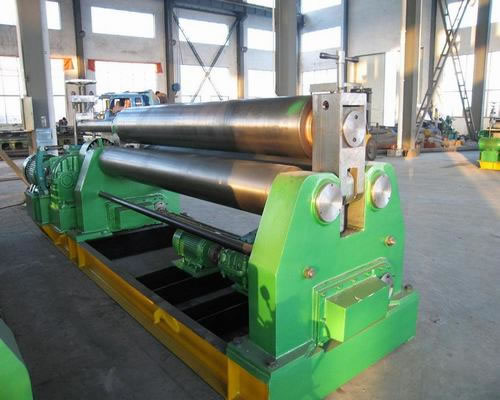

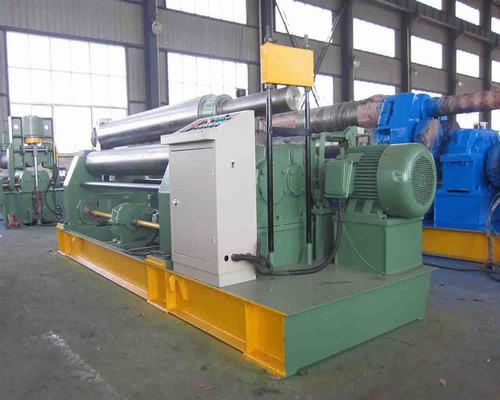

Symmetrical plate rolling machine, also known as symmetrical roll bending machine, is typically a three roll symmetrical rolling machine. The top roll locates in the central symmetric position over the two bottom or lower rolls. This top roll can move vertically to adapt to different radius and pressure requirements. There is a fixed distance between the two bottom rolls. They are arranged symmetrically compared to the top roll. Our symmetrical roll bending machine features compact structure, convenient operation and easy maintenance. It is primarily applied to roll drums or barrels with larger diameter. Symmetrical plate rolling machine needs no auxiliary bending equipment, and as its low cost, it is extensively utilized in the market.
Advantages
Most machines in the market have weak rolls that deform during the bending process. Our symmetrical roll bending machine uses highly durable forged carbon steel (stress-relieved 4140) rolls that are fabricated by high precision CNC lathes. Working surfaces of rolls are CNC induction hardened to 58 RC with hardness tests carried out at different points on the rolls.
Features
1. Our symmetrical plate rolling machine works with good accuracy. It can bend continuously whether the plate is thin or thick.
2. Operations are controlled by NC, facilitating operation and maintenance.
3. This symmetrical roll bending machine is designed with friendly human-computer interface. Users can read the working pressure of hydraulic system and cylinder, motor working condition and sensor displacement on the interface. The machine will also give oil temperature alarm, equipment overload alarm and cooling tip.
Note
Please send us your plate’s rolling information, like plate material, maximum thickness, maximum width and minimum rolling diameter.
Roll Bending Machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.
