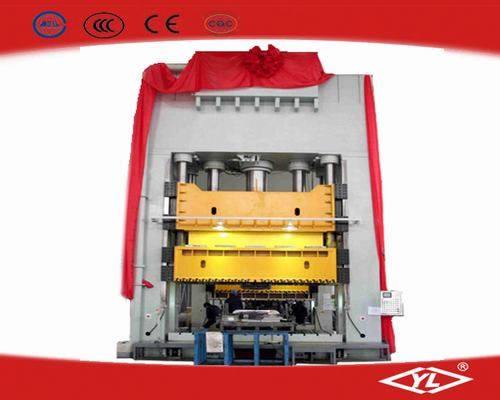

Double Action Press

Description

We offer double action hydraulic press that has simple four-post structure and reliable operating system. With a moveable workhead, it’s easy and practical to change the die. We use PLC control to make sure the operating is flexible and reliable.

Application

This double action hydraulic machine is extensively applied to:
1. Producing drawing products of tractor, motorcycle and aerospace industries.
2. Producing vessels, including stainless steel and aluminum vessels, pressure vessels, etc.
3. Producing cover parts of automobile.
4. Various molding commissioning.

Parameters

Model		YD28
		63/100	100/140	200/300	315/400	400/500	400/630	400/800	400/1800	400/2100	400/2600
Rated Pressure (KN)		1000	1400	3000	4000	5000	6300	8000	18000	21000	26000
Max. Pressure of Liquid (MPa)		25
Force of Stretch Slider (KN)		630	1000	2000	3150	3000	4000	5000	12000	16000	20000
Force of Slide Block (KN)		2 × 200		4 × 250	4 × 250	4 × 500	4 × 630	4 × 800	4 × 1500	4 × 1250	4 × 1500
Size of Center Hole in the Slide Block (mm)		260	330	420	500	800 × 600	1400 × 800	900 × 550	3540 × 1970	1840 × 1200	2040 × 1840
Daylight of Stretch Slider (mm)		1100		1480	1650	2000	2200	2020	2600	2000	4500
Daylight of Slide Block (mm)		590	550	900	1000	1100	1450	1500	2400
Stroke of Stretch Slider (mm)		600		700	800	900	800	900	1350	1000	2000
Ejector Cylinder Stroke (mm)		200		300			350		400
Speed of Stretch Slider (mm/s)	Descent	120		100		150	120	100	120-150		120
	Working	12 - 14	10 - 14	12 - 18	6 - 10	20 - 24	10 - 16	10 - 15	15 - 20	10 - 15	10 - 16
	Return	120		80	60	160	80		100		80
Size of Stretch Slider (mm)	L-R	720		1000	1260	1500	2500	1600	3500	1800	2000
	F-B	580	620	900	1200		1700		1930	1200	1800
Size of Slide Block (mm)	L-R	720		1000	1260		2500		4500	2600	3500
	F-B	580	620	900	1200		1700		2500	2200
Size of Table (mm)	L-R	720		1000	1260		2500		4500	2600
	F-B	580	620	900	1200		1700		2500	2200
Main Motor Power (kW)		7.5		22		2 × 30	2 × 22	2 × 30	4 × 37
