Four-high Leveler

Description

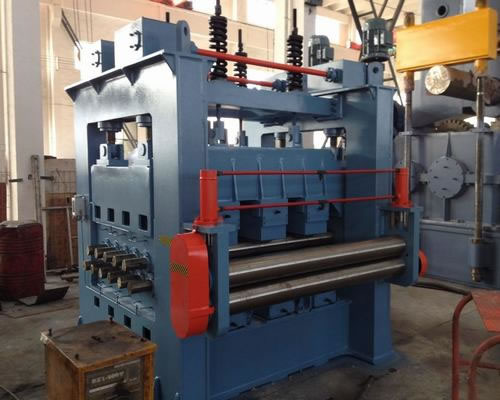

Four-high leveler is a cold-rolled leveling device for sheet metals and strip plates. The four-high roll leveling machine can be either used alone, or used together with various rolling machines and uncoiling machines to constitute a main production line. Four-high straightening machine can be applied to shipbuilding, metallurgy, metal structure, boiler, machinery manufacturing and other industries. This four-high straightening machine adopts framework structure with its movable mold beam moving up and down and two rows of work rolls as the main roll. It is operated through mechanical transmission and electrical control. A four-high leveler has no intermediate rolls, so the backup rolls act directly on work rolls, simplifying roll bending and shape correction. This four-high roll leveling machine works best for leveling, but it may mark or strip the top and bottom of surface-critical materials.

Features

Four-high leveler may have 11, 13, 15, 17, 19 rolls, but a six-high roll leveling machine may have 17 or 19 rolls.

Advantages

1. The work rolls and multiple sets of backup rolls constitute the structure of our four-high roll leveling machine.
2. Materials of rolls, including 42CrMo, GCr15, 9CrSi and 9Cr2Mo, are available in our company.
3. YINLI four-high straightening machine offers manual adjustment and electric adjustment options for customers.
4. This four-high leveler is mainly applicable for leveling carbon steel plates and stainless steel plates.
5. We mainly use manual or electric centralized lubrication for four-high roll leveling machine.
6. We offer ZQ standard, ZY-hardened and TR hardened reducers.
7. The universal connecting shaft adopts metallurgical cardan shaft or automobile cardan shaft.

Note

Users should have an understanding of the maintenance of four-high leveler, which includes the following aspects:
1. Place grease where there are grease fittings once a month. This can be beneficial to the bearing’s lubrication.
2. Pay attention to the cleaning of roller surface. Welding slag, short sheet metal or other things are prohibited from falling into the gap between rollers, so as to avoid damaging the work rolls of this four-high roll leveling machine.
3. After using the machine for a long time, please check if there are loose screw nuts. If so, use wrench to screw them tightly.
4. For any professional problems about this four-high straightening machine, ask professionals for help.

Technical

Parameter

Model	Max. Leveling Thickness (mm)	Max. Leveling Width (mm)	Min. Leveling Thickness (mm)	Distance between Work Rolls (mm)	Diameter of Work Rolls (mm)	Number of Work Rolls	Leveling Speed (m/min)	Main Motor Power (kW)
W43 - 3 × 1600	3	1600	0.8	80	75	15	14.4	18.5
W43 - 6 × 2000	6	2000	1.5	100	95	13	9	37
W43 - 10 × 2000	10	2000	2.5	150	140	13	9	45
W43 - 12 × 2000	12	2000	3	160	150	11	9	55
W43 - 12 × 2500	12	2500	4	160	150	11	7	63
W43 - 16 × 2000	16	2000	4	200	180	11	7	75
W43 - 16 × 2500	16	2500	4	200	180	11	6	75
W43 - 16 × 3200	16	3200	4	210	180	11	7	90
W43 - 20 × 2500	20	2500	5	250	230	9	6	75
W43 - 25 × 2500	25	2500	6	250	230	9	7	90
W43 - 30 × 3000	30	3000	10	400	340	7	5	85
W43 - 32 × 2000	32	2000	8	300	260	9	7	110
W43 - 40 × 2500	40	2500	10	400	340	7	7	132
