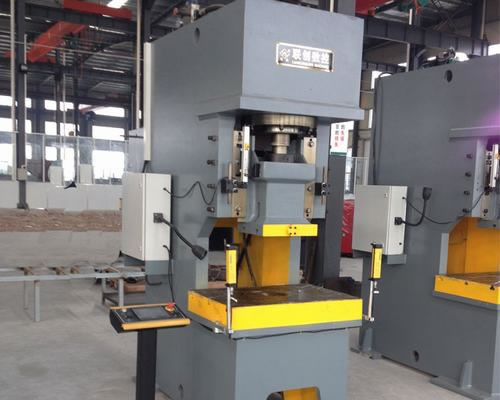

Hydraulic Punch Press

Description

Our hydraulic punch presses are applied to metal drawing, flanging, bending, punching, blanking, cold extrusion, and so on. These hydraulic punching machines can also be used for adjusting, pressing and forming various powder and plastic products.

Features

1. Photoelectric protection to ensure the steady and safe operation of hydraulic punch press.
2. PLC control and touch screen facilitates operation.
3. Compact structure and nice workpiece.
4. Energy conservation and environmental protection, as well as small shaking and low-noise.
5. Constant force is suitable for flexible processing of our hydraulic punching machine.
6. Commonly-used latch handle and standard working table.

Advantages

1. Upright C frame structure of our hydraulic punch press assures excellent rigidity.
2. Easy operation and spacious working area make the press suitable for bending, straightening, forming and flanging wide, long and slightly thick plates.
3. Cantilever crane can be equipped on the hydraulic punching machine.
4. Cartridge hydraulic control system ensures safe and reliable operation, long service life as well as small hydraulic shock.
5. PLC controlled electrical system realizes compact structure, effective work and excellent flexibility.
6. Manual adjustment and semi-automatic operation are available.

Technical

Parameter

Model	C21-63T	C21-80T	C21-100T	C21-125T	C21-160T
Rated Force (KN)	630	800	1000	1250	1600
Stroke of Slider Block (mm)	160	160	160	180	180
Number of Stroke (mm)	20 to 40	20 to 40	20 to 40	20 to 40	20 to 40
Max. Height of Die Set (mm)	280	300	300	320	350
Height Adjustment of Die Set (mm)	140	140	140	160	160
Distance from Center of Slider Block to the Frame (mm)	250	280	290	350	380
Worktable Dimensions (W × L × H) (mm)	420 × 720 × 80	480 × 780 × 100	550 × 860 × 110	650 × 1000 × 130	700 × 1200 × 140
Size of Handle Hole (Diameter × Depth) (mm)	50 × 70	60 × 80	60 × 80	60 × 80	80 × 80
Motor (kW)	4	7.5	7.5	11	15
