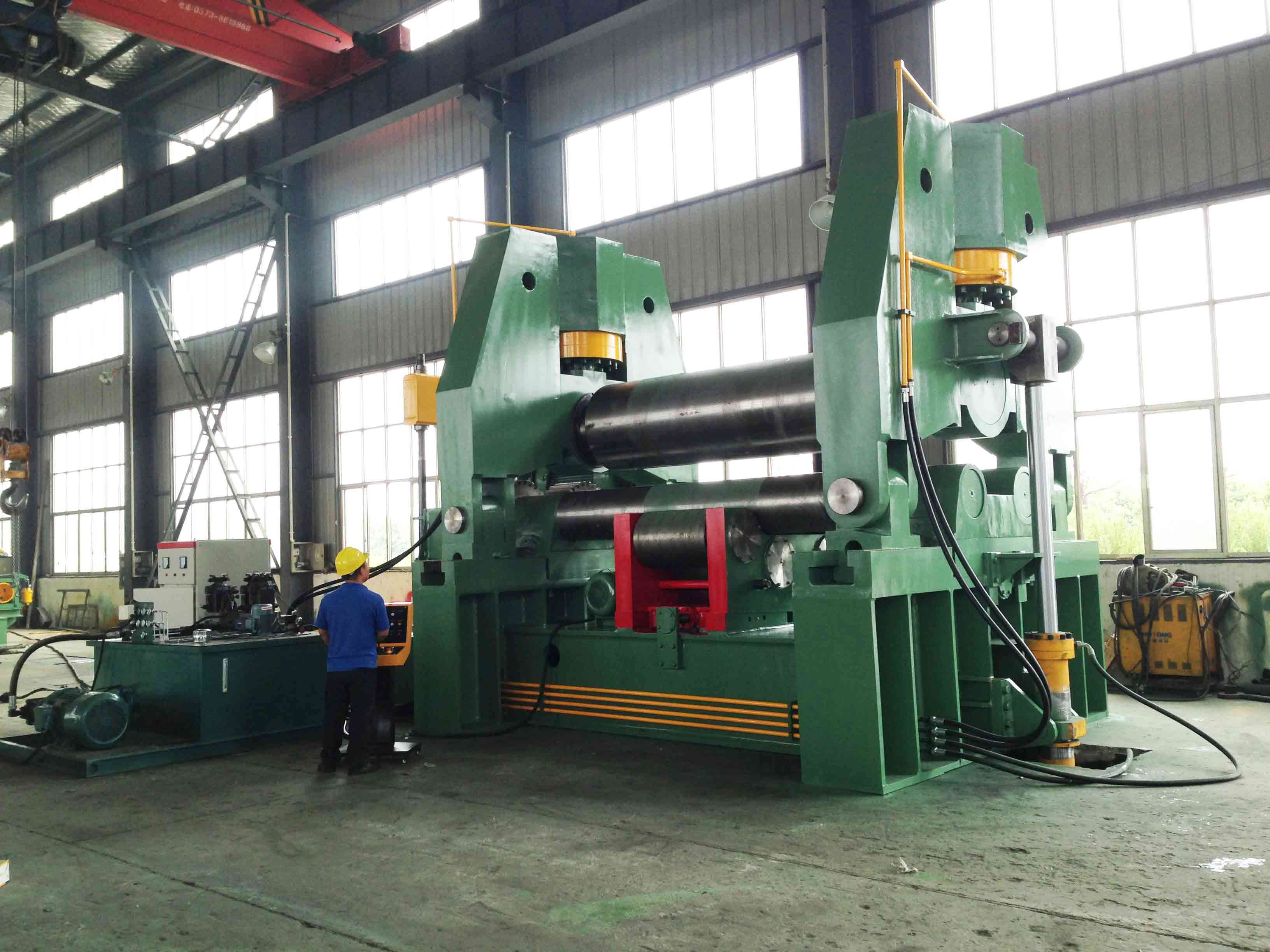

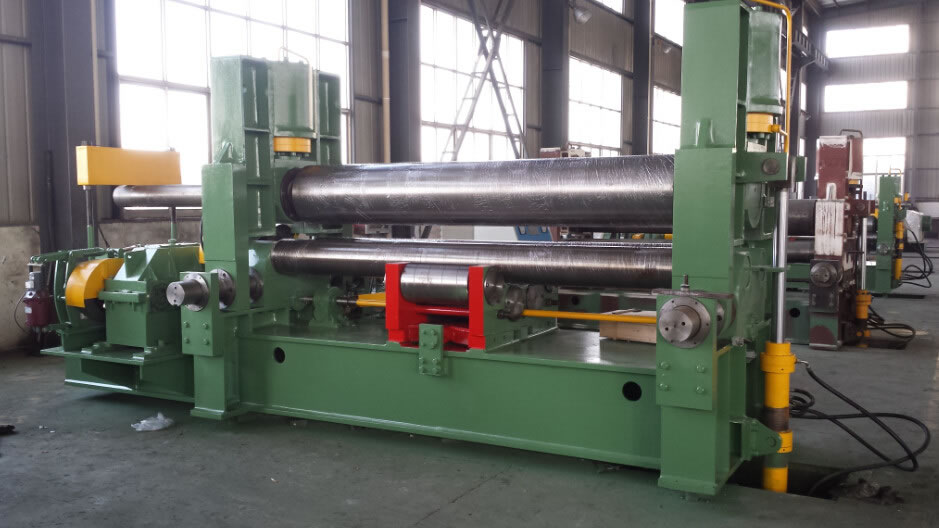

Multifunctional Plate Rolling Machine

Description

Our multifunctional plate rolling machine is primarily applied to roll certain plates into arc, drum, triangle, oval, etc. The basic working principle of this universal bending machine is to curve and roll. Our multifunctional plate rolling machine is extensively applied in industries like chemical, petroleum, boiler, cement, aviation, water conservancy, shipbuilding, power transmission towers and other machineries.
Our universal bending machine consists of a top roll, two lower rolls and horizontal movement mechanism, main drive mechanism, supporting mechanism, balance and chassis mechanism, left and right machine frame, as well as hydraulic and electrical control systems.

Features

The top roll of our universal bending machine can move vertically and horizontally. By moving down, it can pinch the plate, and by moving left and right, it performs pre-bending.

Advantages

1. Our multifunctional plate rolling machine can roll thick or thin plates with high straightness.
2. The top roller of this universal bending machine can move vertically and horizontally, so no auxiliary equipment is required.
3. It can finish pre-bending, bending, curvature forming as well as correction of the work piece.
4. Our multifunctional plate rolling machine features NC control, excellent precision, high productivity, integral structure, safety and various bending shapes.

Note

Please send us your plate’s rolling information, like plate material, maximum thickness, maximum width and minimum rolling diameter.
Roll bending machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.

Technical Parameter

Model	Pressure of Upper Roller	Roll Capacity		Diameter of Top Roll	Diameter of Lower Roll	Central Distance	Main Motor (kW)
		End (mm)	Central (mm)
W11S - 10 × 1500	37	8	10	205	135	180	4
W11S - 12 × 2000	65	10	12	250	145	200	5.5
W11S - 16 × 2500	100	12	16	300	165	270	11
W11S - 20 × 3000	160	16	20	375	200	330	18.5
W11S - 25 × 2500	190	20	25	380	220	360	18.5
W11S - 30 × 2500	230	25	30	410	235	380	22
W11S - 35 × 3000	320	30	35	500	260	420	37
W11S - 40 × 3500	430	35	40	550	275	460	45
W11S - 45 × 2500	430	40	45	520	275	460	45
W11S - 50 × 3500	540	45	50	630	340	610	55
W11S - 55 × 3000	610	45	55	620	360	650	55
W11S - 60 × 4000	760	50	60	780	380	700	75
W11S - 65 × 3000	760	55	65	700	380	700	75
W11S - 70 × 4000	1000	65	70	820	440	820	75
W11S - 75 × 3500	1000	65	75	780	440	820	75
W11S - 80 × 3000	1000	70	80	770	440	820	75
W11S - 90 × 4000	1350	80	90	910	480	920	90
W11S - 100 × 3000	1250	85	100	820	480	920	90
W11S - 110 × 3500	1400	95	110	940	520	1000	110
W11S - 120 × 3000	1600	100	120	900	520	1000	110
W11S - 140 × 3000	2200	120	140	960	620	1200	75 × 2
