Description

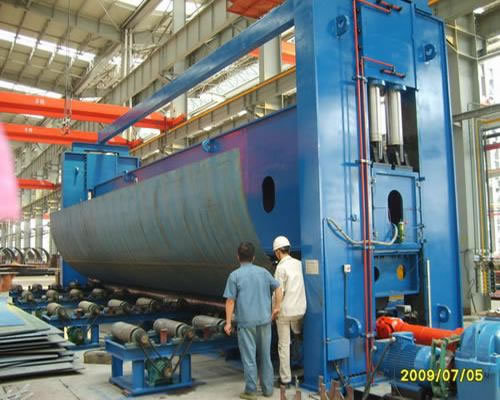

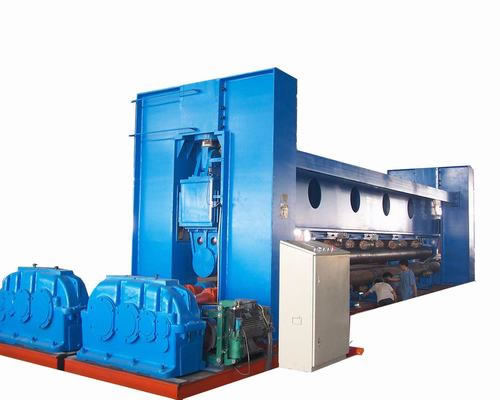

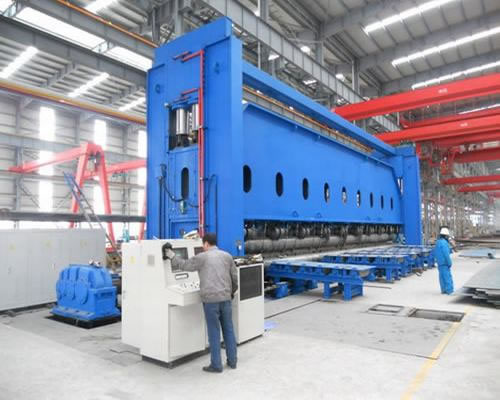

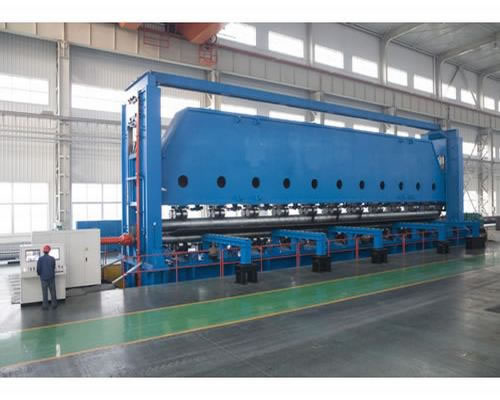

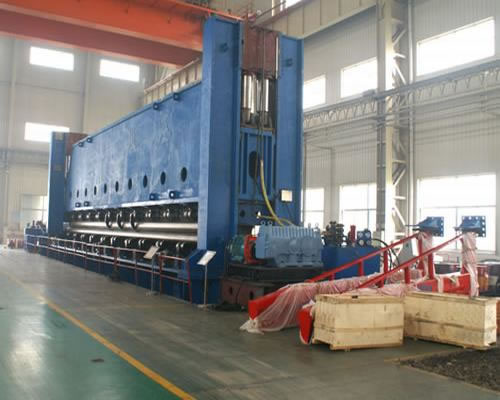

Marine plate rolling machine can be used to roll super wide arc-shaped parts. It is designed with double pinch 3 roll symmetrical structure. The top roll moves up and down on the symmetrical central position of the two bottom rolls, and the lower rolls make rotational movement, providing torque to the rolling plate. A rigid beam is designed at the top of the machine’s top roll, and multiple sets of carrier rollers are set between the top roll and the beam, in an effort to increase the rigidity of this marine plate rolling machine’s top roll. Similarly, several sets of carrier rollers at the bottom of the two lower rolls are designed to increase the rigidity of these bottom rolls.
Features
1. Marine plate bending machinery is designed with full enclosure to prevent dust from entering.
2. It is characterized by convenient maintenance, high efficiency, long service life and excellent environment protection effect.
3. Marine plate rolling machine uses steel welded structure with high rigidity, and it also utilizes finite element analysis method to optimize design.
4. This machine changes the oil splitting phenomenon of conventional bending machines, and its appearance has reached global level.
5. The control panel uses humanization design with simple and convenient operation.
6. This marine plate bending machinery is designed with support roll to support the two lower rolls. This can increase the accuracy of rolling operation and the performance of the whole machine.
7. A centralized lubrication system is designed with this marine plate rolling machine.
Note
Please send us your plate’s rolling information, like plate material, maximum thickness, maximum width and minimum rolling diameter.
Roll bending machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.
Technical
Parameter
Model
|
Max.
Rolling Thickness (mm)
|
Max.
Rolling Width
(mm)
|
Yield Limit (MPa)
|
Motor Power
(kW)
|
W11- 20 × 8000
|
20
|
8000
|
245
|
45
|
W11- 25 × 12000
|
25
|
12000
|
245
|
55
|
W11- 30 × 12000
|
30
|
12000
|
245
|
75
|
W11- 30 × 16000
|
30
|
16000
|
245
|
110
|
W11- 40 × 18000
|
40
|
18000
|
245
|
2 × 75
|
W11- 40 × 21000
|
40
|
21000
|
245
|
2 × 75
|
