Four Roll Plate Rolling Machine

Description

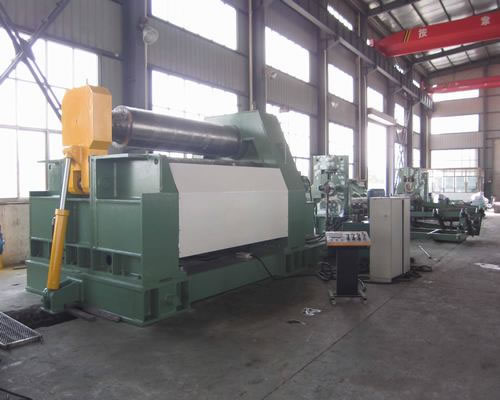

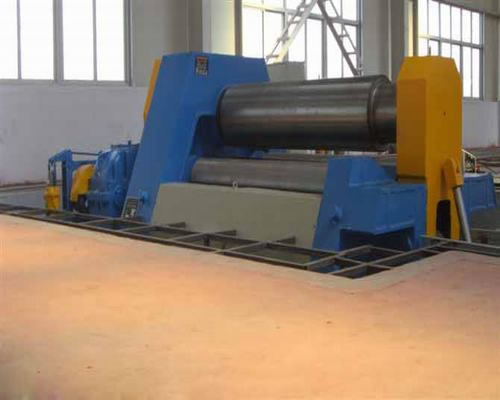

CNC four roll plate rolling machine is a kind of CNC plate bending machine. It adopts a four-roll structure with its top roll as the main drive. The lower roll makes vertical movement and imposes a force on the position through the hydraulic oil in the hydraulic cylinder in order to clamp the plate tightly. The two side rolls are engineered on the two sides of the lower roll to make inclining movement along the guide rail, and to provide drive through the screw, the nut, the worm and the lead screw. Our four roll plate bending machine mainly consists of top roll, lower roll, side rolls, left and right side frames, downturn system, chassis, hydraulic system, balance system and electrical control system.

Features

Four roll plate rolling machine is more precise, more versatile, more productive, and safer and easier to operate than 3 roll plate rolling machines. They are ideal for bending plates up to 6 inches thick.

Advantages

1. This four roll plate bending machine thoroughly solves the difficulty of rolling thinner stave.
2. The preliminary bending and rolling of the top ends of plates can be conducted on the same machine.
3. This four roll plate rolling machine is designed with clear interface, allowing simple, convenient and precise operation.
4. Our four roll plate bending machine can realize greater declivity of the upper roll and side rolls through the change of roll.
5. It is a product that can help customers to achieve high reliability, production efficiency and competiveness.

Note

Please send us your plate’s rolling information, like plate material, maximum thickness, maximum width and minimum rolling diameter.
Roll Bending Machines are very dangerous if used carelessly because they can crush fingers, hands, etc. Always keep fingers, hands, hair and clothing clear. Safety guarding or devices such as safety light curtains are recommended for predictable repeat uses. Please take safety compliance responsibility seriously.

Model	Upper Roll Diameter (mm)	Lower Roll Diameter (mm)	Side Roll Diameter (mm)	Motor Power (kW)
W12CNC - 4 × 2000	160	140	120	2.2
W12 CNC - 6 × 2000	190	170	150	3
W12 CNC - 8 × 2000	210	190	170	7.5
W12 CNC - 10 × 2000	230	210	180	7.5
W12 CNC - 13 × 2000	270	250	210	11
W12 CNC - 16 × 2000	300	270	210	11
W12 CNC - 20 × 2000	330	300	340	11
W12 CNC - 25 × 2000	360	330	250	15
W12 CNC - 30 × 2000	390	360	300	22
W12 CNC - 6 × 2500	190	170	150	3
W12 CNC - 8 × 2500	210	190	170	7.5
W12 CNC - 10 × 2500	230	210	190	7.5
W12 CNC - 13 × 2500	270	250	210	11
W12 CNC - 16 × 2500	300	270	210	11
W12 CNC - 20 × 2500	330	300	240	11
W12 CNC - 25 × 2500	360	330	250	15
W12 CNC - 30 × 2500	390	360	300	18.5
W12 CNC - 4 × 3000	210	190	170	7.5
W12 CNC - 8 × 3000	230	210	190	7.5
W12 CNC - 10 × 3000	270	250	210	11
W12 CNC - 13 × 3000	300	270	210	11
W12 CNC - 16 × 3000	330	300	240	11
W12 CNC - 20 × 3000	360	330	250	15
W12 CNC - 25 × 3000	390	360	300	18.5
W12 CNC - 30 × 3000	430	390	330	22
