Description

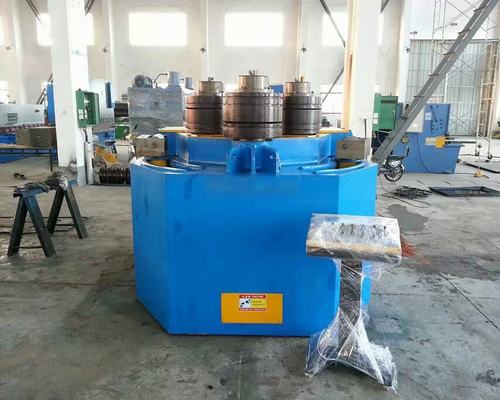

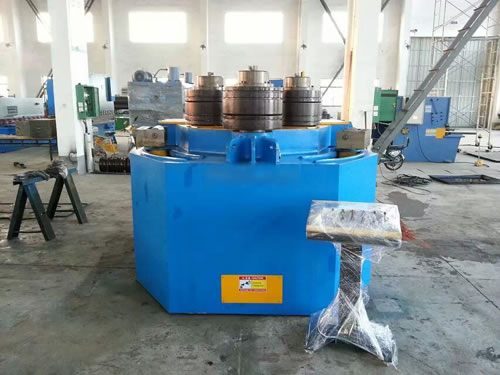

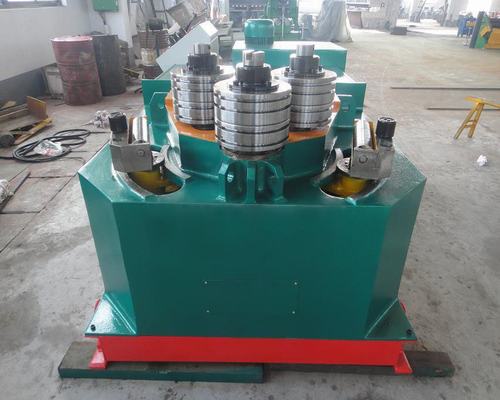

The hydraulic profile bending machine is a special device that can bend various kinds of profiles into arc workpieces. Our section bending machine adopts vertical or horizontal structure. It is extensively used in chemical, petroleum, shipbuilding, water and electricity, metal structure, machinery manufacturing, etc. Our hydraulic profile bending machine mainly consists of roll, mechanical transmission parts, electrical parts, hydraulic system, mold, and so on. In addition to this hydraulic bending machinery, we also offer CNC profile bending machine.
Features
1. The hydraulic profile bending machine is designed with two fixed lower rolls and an upper roll, which moves vertically.
2. This section bending machine has sufficient stiffness and strength to bend profiles within its bending capacity.
3. Our hydraulic profile bending machine can bend flat steel, angle steel, square steel, round steel, channel steel, steel pipe and other profiles.
4. It is equipped with an independent operation bench, which allows convenient operation. Steel plate welded structure is adopted to eliminate internal stress through annealing.
5. This section bending machine features reliable operation and multiple functions.
Technical Parameters
Model
|
W24S -6
|
W24S -16
|
W24S -30
|
W24S -45
|
W24S -75
|
W24S -100
|
Elastic Modulus in Static Bending
|
6
|
16
|
30
|
45
|
75
|
100
|
Rolling Speed (m/min)
|
6
|
5
|
Yield Limit (Mpa)
|
△S=250
|
 Angle Steel Leg-in
|
|
Max. section (mm)
|
40 × 5
|
70 × 8
|
80 × 8
|
90 × 10
|
100 × 10
|
120 × 12
|
Min. u-bend dia. (mm)
|
800
|
1000
|
1200
|
1500
|
2000
|
2500
|
Min. section (mm)
|
20 × 3
|
30 × 3
|
35 × 3
|
36 × 5
|
38 × 4
|
40 × 5
|
Min. u-bend dia. (mm)
|
400
|
550
|
560
|
600
|
600
|
720
|
Angle Steel Leg-out
|
|
Max. section (mm)
|
50 × 5
|
80 × 8
|
90 × 10
|
100 × 10
|
120 × 12
|
140 × 16
|
Min. u-bend dia. (mm)
|
800
|
1000
|
1100
|
1300
|
1600
|
1800
|
Min. section (mm)
|
20 × 3
|
30 × 3
|
35 × 3
|
36 × 5
|
38 × 4
|
45 × 5
|
Min. u-bend dia. (mm)
|
400
|
550
|
500
|
600
|
700
|
760
|
Channel Steel Leg-in
|
|
Channel steel model
|
8
|
12
|
16
|
20
|
25
|
28
|
Min. u-bend dia. (mm)
|
600
|
800
|
800
|
1000
|
1100
|
1700
|
Channel Steel Leg-out
|
|
Channel steel model
|
8
|
12
|
16
|
20
|
25
|
28
|
Min. u-bend dia. (mm)
|
700
|
800
|
1000
|
1150
|
1600
|
1700
|
Flat Steel Bent Horizontally
|
|
Max. section (mm)
|
100 × 18
|
150 × 25
|
180 × 25
|
200 × 30
|
220 × 40
|
250 × 40
|
Min. u-bend dia. (mm)
|
600
|
700
|
800
|
900
|
1000
|
1200
|
Flat Steel Bent Vertically
|
|
Max. section (mm)
|
50 × 12
|
75 × 16
|
90 × 20
|
100 × 25
|
110 × 40
|
120 × 40
|
Min. u-bend dia. (mm)
|
500
|
760
|
800
|
1000
|
1100
|
1300
|
Steel Pipe
|
|
Max. section (mm)
|
42 × 4
|
76 × 4.5
|
89 × 5
|
89 × 8
|
114 × 5
|
159 × 5
|
Min. u-bend dia. (mm)
|
500
|
750
|
900
|
900
|
1200
|
2000
|
Steel Rod
|
|
Max. section (mm)
|
38
|
52
|
62
|
75
|
85
|
90
|
Min. u-bend dia. (mm)
|
450
|
600
|
600
|
800
|
1000
|
1100
|
Square Tube
|
|
Max. section (mm)
|
45 × 3
|
60 × 4
|
70 × 4
|
80 × 6
|
90 × 8
|
100 × 10
|
Min. u-bend dia. (mm)
|
750
|
900
|
1000
|
1200
|
1600
|
2000
|
